Laser Hardening offers customers an excellent alternative to induction and flame hardening.

With laser precision and robotic control, laser hardening can be applied to complex surfaces while achieving repeatable hardness and case depth. The surface finish after laser hardening is excellent and in some cases requires no finishing work. The process is used exclusively on ferrous materials containing a minimum of 0.20% carbon.

The laser acts as a local heat source quickly bringing the surface up to the desired temperature. After the desired temperature is obtained, the laser travels a pre-determined path along the component. As the laser travels, the base material acts as a heat sink, quickly quenching the heated surface. This quick cooling provides a very fine martensitic grain structure; creating a superior localized heat treatment.

Real-Time pyrometer controlled heat input for use on carbon steel with carbon content of 0.2 and higher.

Case depth and surface hardness can be tailored to each application allowing our customers the freedom to design parts with tighter tolerances and longer life cycles.

Capabilities

25 Metric Ton Crane Capacity

4KW Diode Laser

6KW Diode Laser

4KW Fiber Laser

Large Work Envelope (30’x12’x12′)

Off-line simulation for quick and accurate development

Controlled heat input through real-time measurement of temperature

Full 3D modeling and CAM control ensures repeatability and accuracy

Advantages

Hardening of selected regions with pinpoint accuracy

Very fast and efficient

Depending on carbon/alloy content, some steels can be hardened to 62+ HRC

Automated temperature control, for consistent case depth and hardness

Minimal if any, part distortion

Improves wear characteristics without changing the part dimensionally

[nectar_portfolio layout=”fullwidth” constrain_max_cols=”true” category=”advantages” project_style=”7″ item_spacing=”default” masonry_style=”true” lightbox_only=”true” load_in_animation=”perspective”]

Applications

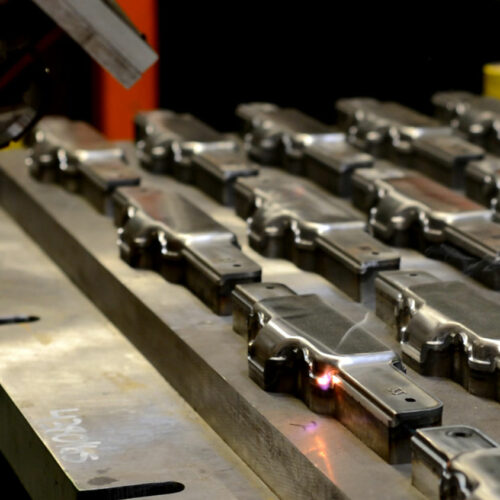

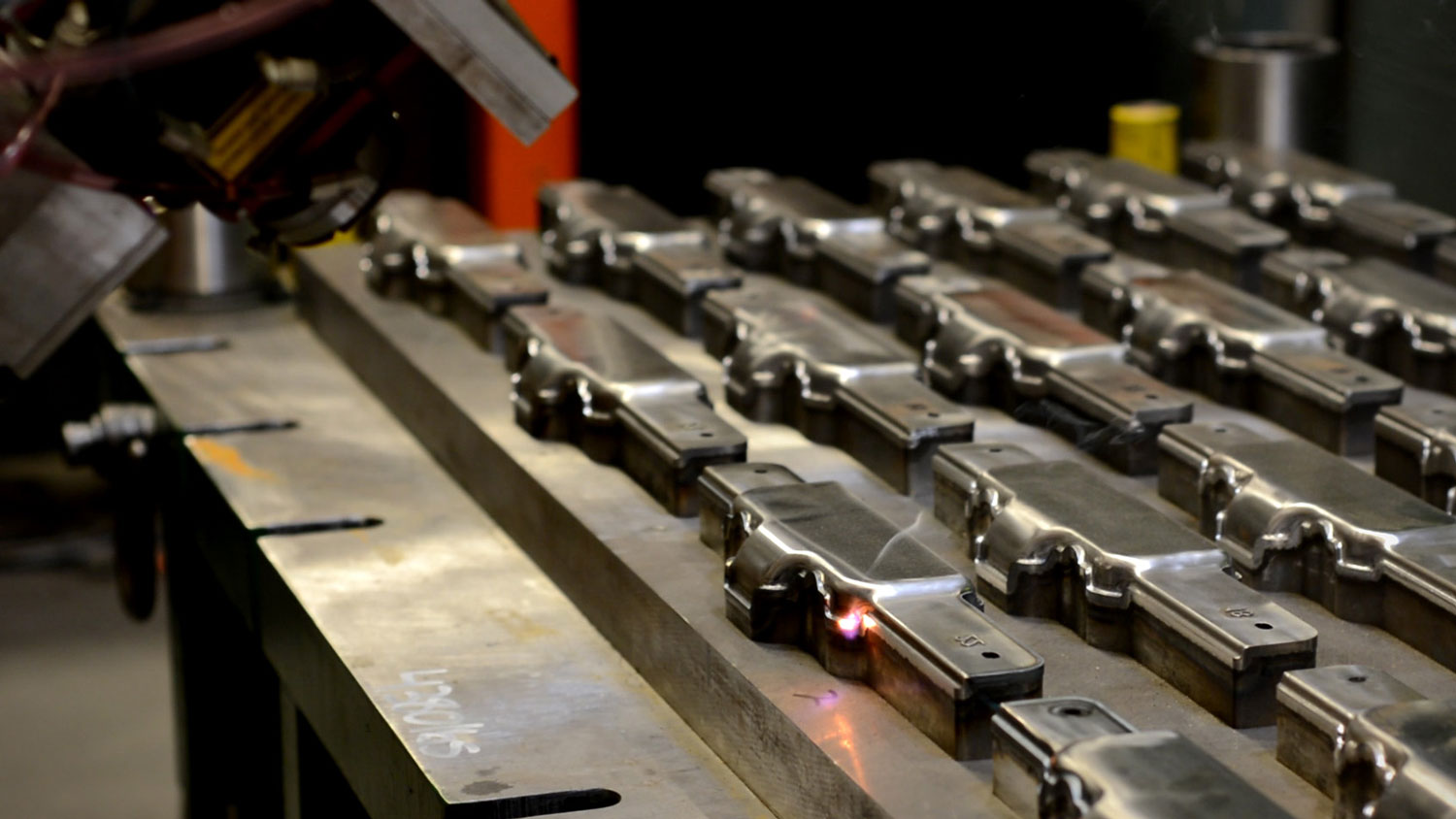

Metal Forming Dies

Plastic Injection Tooling Parting Lines

Cam Channels

Crane Wheels

Down-Hole Drilling Components

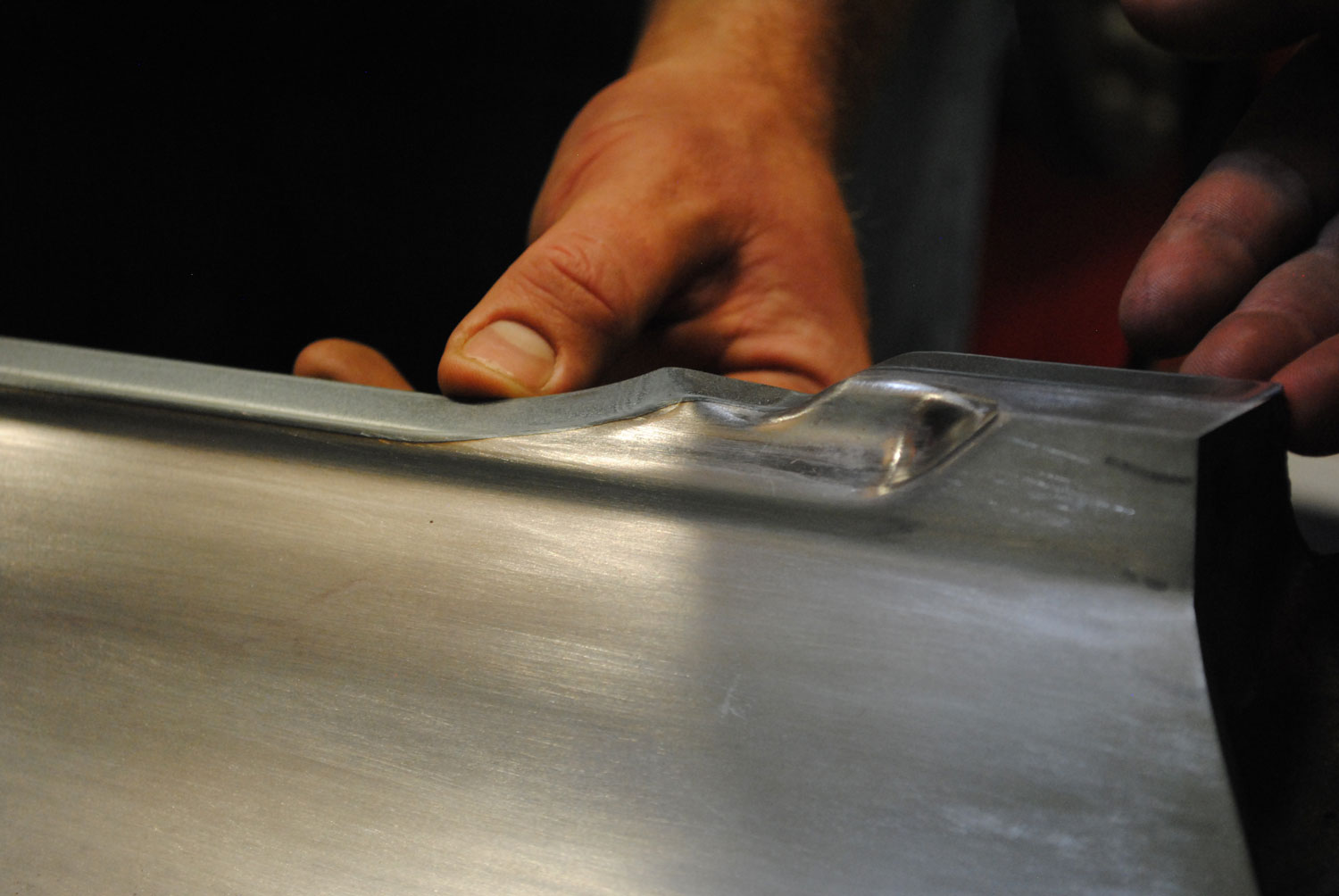

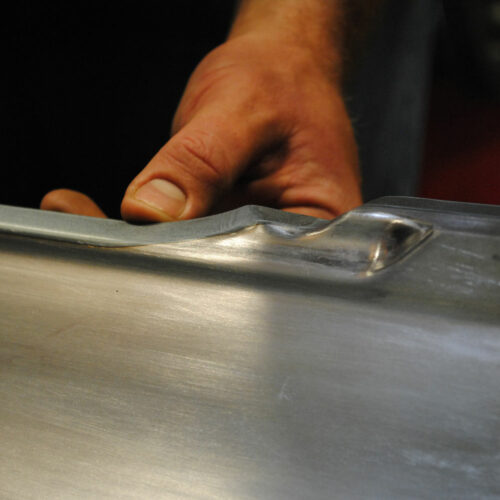

Metal and Fabric Trim Dies

Gear Teeth

Core Box Blow Tube Abrasion
